N-Type TOPCon Solar Panel

N-Type TOPCon Solar Panel

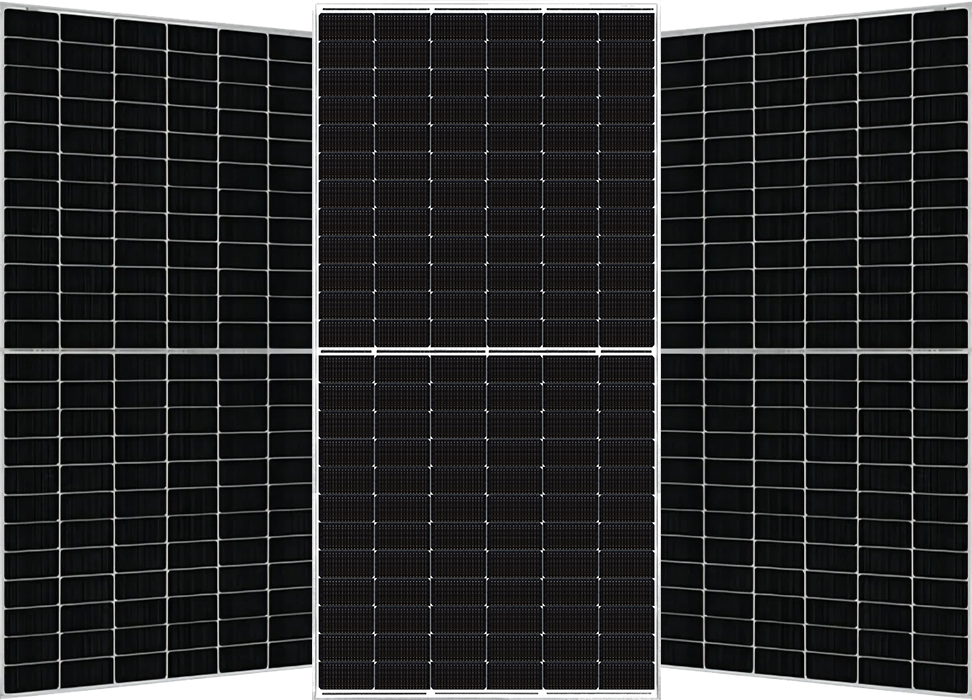

Sahjanand N-Type TopCon Half-cut Bifacial Modules

Sahjanand Solar's N-Type TOPCon modules deliver superior efficiency, enhanced energy yield, and longer lifespan compared to Mono-PERC bifacial panels. With lower degradation and better temperature performance, these modules provide top-tier reliability and performance in solar power systems. Choose N-Type TOPCon for advanced,durable solar solutions.

Extra Life

Lower Temperature Co-efficient

Double Sided Power Generation

Extra Power

560 To 650 Watt

Module Efficiency >23.24

30 Year performance Warranty

15 Year Product Warranty

Bis Approved

Explore our widest Range

Sahjanand 570w N-type TOPCon Solar PV Module

Module Efficiency : 21.63%
Maximum System Voltage : 1500 V DC
Voltage : 24 V
Number of Cells : 144 Cells 182 mm - M10
Dimensions : 2278(L) X 1133(W) X 30/35(H) mm
Weight : 32 KG
Maximum Series Fuse Rating : 25A

View Datasheet Bulk Enquiry

Sahjanand 575w N-type TOPCon Solar PV Module

Module Efficiency : 21.63%
Maximum System Voltage : 1500 V DC
Voltage : 24 V
Number of Cells : 144 Cells 182 mm - M10
Dimensions : 2278(L) X 1133(W) X 30/35(H) mm
Weight : 32 KG
Maximum Series Fuse Rating : 25A

View Datasheet Bulk Enquiry

Sahjanand 580w N-type TOPCon Solar PV Module

Module Efficiency : 21.63%
Maximum System Voltage : 1500 V DC
Voltage : 24 V
Number of Cells : 144 Cells 182 mm - M10
Dimensions : 2278(L) X 1133(W) X 30/35(H) mm
Weight : 32 KG
Maximum Series Fuse Rating : 25A

View Datasheet Bulk Enquiry

Sahjanand 585w N-type TOPCon Solar PV Module

Module Efficiency : 21.63%
Maximum System Voltage : 1500 V DC
Voltage : 24 V
Number of Cells : 144 Cells 182 mm - M10
Dimensions : 2278(L) X 1133(W) X 30/35(H) mm
Weight : 32 KG
Maximum Series Fuse Rating : 25A

View Datasheet Bulk Enquiry

Sahjanand 590w N-type TOPCon Solar PV Module

Module Efficiency : 21.63%
Maximum System Voltage : 1500 V DC
Voltage : 24 V
Number of Cells : 144 Cells 182 mm - M10
Dimensions : 2278(L) X 1133(W) X 30/35(H) mm
Weight : 32 KG
Maximum Series Fuse Rating : 25A

View Datasheet Bulk Enquiry

Sahjanand 595W N-type TOPCon Solar PV Module

Module Efficiency : 21.63%
Maximum System Voltage : 1500 V DC
Voltage : 24 V
Number of Cells : 144 Cells 182 mm - M10
Dimensions : 2278(L) X 1133(W) X 30/35(H) mm
Weight : 32 KG
Maximum Series Fuse Rating : 25A

View Datasheet Bulk Enquiry

Sahjanand 600w N-type TOPCon Solar PV Module

Module Efficiency : 21.63%
Maximum System Voltage : 1500 V DC
Voltage : 24 V
Number of Cells : 144 Cells 182 mm - M10
Dimensions : 2278(L) X 1133(W) X 30/35(H) mm
Weight : 32 KG
Maximum Series Fuse Rating : 25A

View Datasheet Bulk Enquiry

LID

Lower LID

PID Resistance

Exceptional PID resistance

Size

182 mm x 182 mm

Lower Power Temperature Coefficient

Better Performance in Low Irradiance Environment

High Conversion Efficiency

RTI of Plastic is 125°C

IP68 Rated

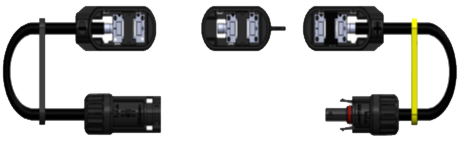

Split Type Junction Box & Connectors

Innovative Full-G lue-Filled Junction Box Outstanding Sealability

More than 94% AR Coated

Tempered Glass

2.00 mm

Thickness

Tempered Glass

Better Light Absoroption with High Transmission AR Coated Tempered Glass
